Recording > Studio Monitors > JBL 305P-MKII Powered Two Way Studio Monitors, 5"

JBL 305P-MKII Powered Two Way Studio Monitors, 5"

Experience and excellence

For 70 years we have employed one of the best methodology and tools, and, as established at the very beginning by our founder, James B. Lansing, we develop everything from the ground up. This not only ensures success in the marketplace, it guarantees our efforts exceed the needs and expectations of audio professionals throughout the world. It’s a journey that is legendary worldwide and has positioned JBL as one of the world leaders in professional audio.

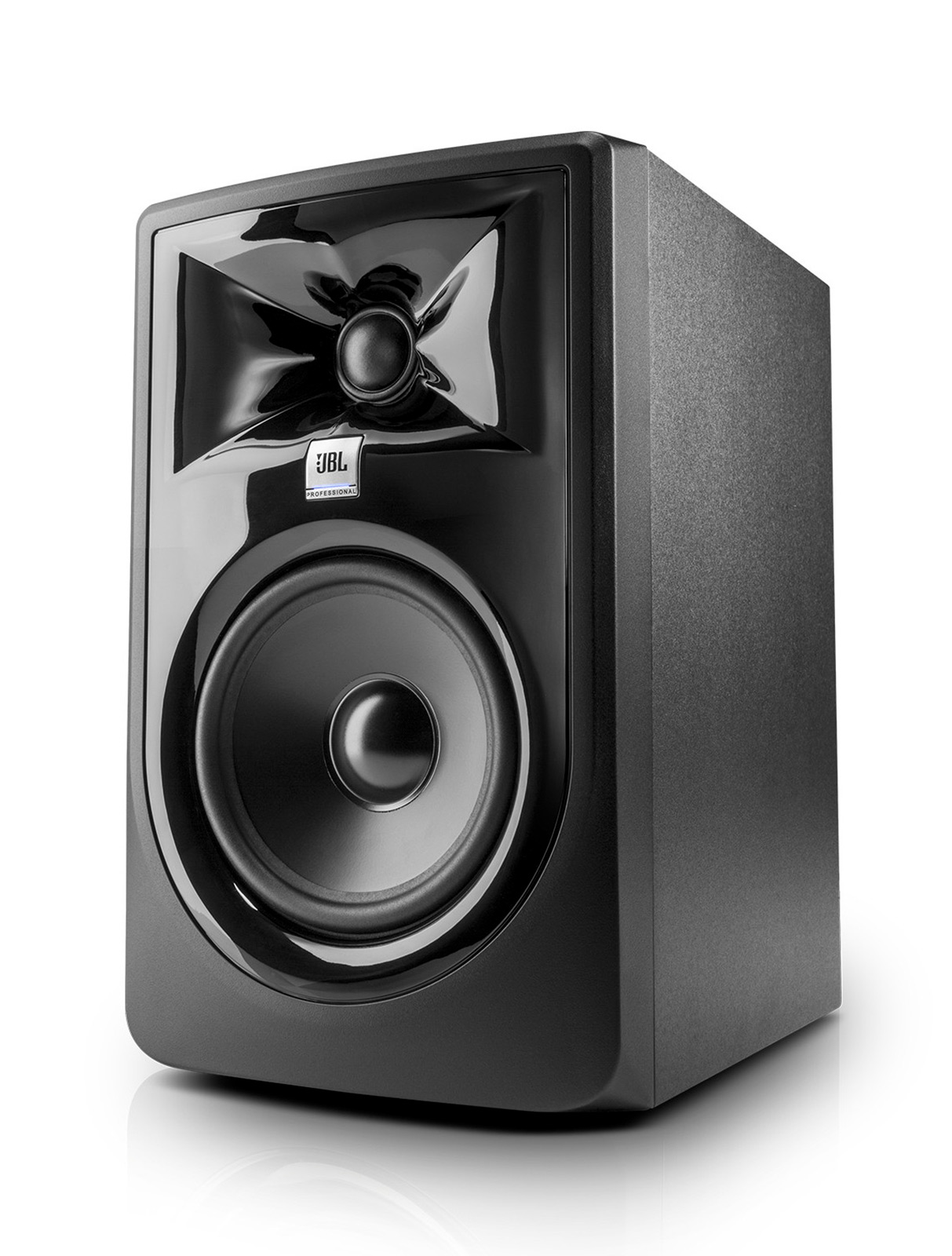

305P MkII

Powered 5" Two-Way Studio Monitor

The next-generation 3 series MkII powered studio monitors makes legendary JBL performance available to every studio. With the revolutionary JBL Image Control Waveguide and refined transducers, the 305P MkII offers stunning detail, precise imaging, a wide sweet spot, and impressive dynamic range that enhances the mix capabilities of any modern workspace. Sporting a sleek, modern design and leveraging patented technologies derived from the JBL 7 Series and M2 Master Reference Monitors, the 305P MkII delivers outstanding performance and an enjoyable mix experience at an accessible price.

82 watts of total power from dual integrated, custom Class-D amplifiers
Maximum continuous/peak SPL: 94dB/108dB
Sleek, modern design provides a visual upgrade to any studio
Approved for use near magnetically sensitive equipment
Strenuous JBL 100-hour full-power test ensures years of reliability


Image Control Waveguide JBL’s Patented Image Control Waveguide provides detailed imaging and a broad, room-friendly sweet spot, which means you'll experience greater depth and ambience in recordings. Subtle details can be heard, even in a dense mix.	JBL's Patented Slip Stream low frequency port Works in concert with the woofer to produce superior deep bass response at all playback levels. The double-flared shape of the port is precisely engineered for greater low frequency extension and reduced turbulence.	Updated Low Frequency Transducers Design improvements in the JBL 3 Series MkII result in greater low-frequency linearity, with optimized transient response and lower harmonic distortion.


	305P MkII	306P MkII	308P MkII
System Type	Powered 5" Two-Way Studio Monitor	Powered 6" Two-Way Studio Monitor	Powered 8" Two-Way Studio Monitor
Frequency Range (-10dB)	43 Hz – 24 kHz	39 Hz – 24 kHz	37 Hz – 24 kHz
Frequency Response (±3dB):	49 Hz – 20 kHz	47 Hz – 20 kHz	45 Hz – 20 kHz
Peak SPL Max	108dB	110dB	112dB
Peak Input Max (-10dBV / +4dBu):	+6dBV / +20.3dBu	+6dBV / +20.3dBu	+6dBV / +20.3dBu
Coverage Pattern	120° x 90°	120° x 90°	120° x 90°
HF/LF Trim Control	-2dB, 0dB, +2dB	+2 dB, 0, -2 dB (HF only)	-2dB, 0dB, +2dB
Input Types	Balanced XLR and 1/4" TRS	Balanced XLR and 1/4" TRS	Balanced XLR and 1/4" TRS
Cabinet Dimensions	11.7" x 7.3" x 9.1" (298 x 185 x 231mm)	14.2" x 8.8" x 11.1" (361 x 224 x 282mm)	16.5" x 10" x 12.1" (419 x 254 x 308mm)
Net Weight	10.43 lbs (4.73 kg)	13.42 lbs (6.1 kg)	17.87 lbs (8.1 kg)
